Solar Panel Module: Maximize Your Sun Yield

To measure is to know, especially when you are off-grid. Our high-end Solar Panel Measurement Module provides real-time insight into the exact output of your solar panels. Equipped with the ultra-precise INA226 chip and paired with a robust 50A shunt, this module registers every single ray of sunlight with extreme accuracy. No estimates, just hard data on voltage, current, and power, sent directly to your central controller via the SystemBus. This way, you always know exactly how much energy is flowing in, allowing you to perfectly optimize your camper’s power consumption.

  • Direct Shunt Connection: The module is specifically designed to interface seamlessly with an external 50A shunt. This allows you to keep the heavy power cables from your solar panels short and thick, while the module safely reads the data.
  • Integrated SystemBus: Sends all measurement data digitally and without any loss of quality to the Master Controller.

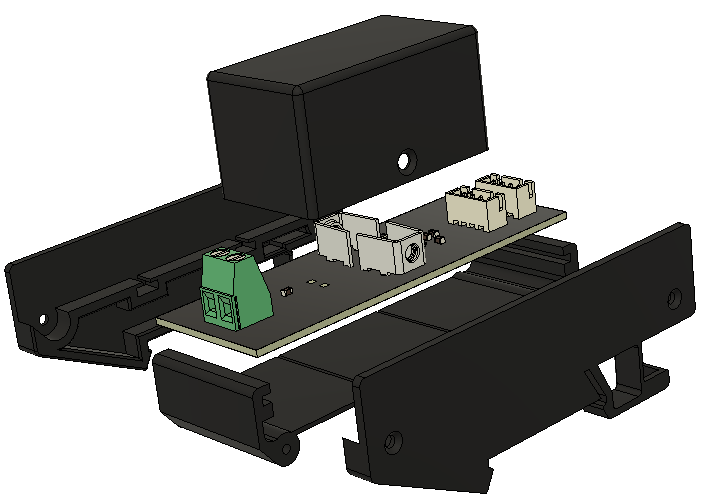

  • Compact & Organized: Thanks to its clean layout and sturdy terminals, you can effortlessly integrate this power meter into your existing fuse box or electrical hub.
  • Ultra-Precise INA226 Driver: This specialized, bi-directional current and voltage monitor measures with minimal margin of error. Even the smallest charging current during the early morning sun or late evening hours is flawlessly registered.

Technical specifications.

Powersupply8-15V DC
Power:2mA
Bus-Voltage12V DC
CommunicationI2C
Dimensions (LxWxH)36x95x60mm
VariantsAvailable as kit or digital download

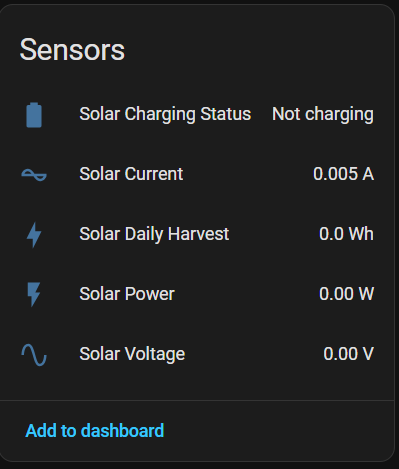

Sensors
  • sensor.solar_charging_status
  • sensor.solar_current
  • sensor.solar_daily_harvest
  • sensor.solar_power
  • sensor.solar_Voltage
