9-Channel LED Dimmer: Ultimate Control Over Light & Color

Bring your camper interior to life with the most versatile dimming module in our product range. With no fewer than 9 independent channels, this module offers unprecedented possibilities. Whether you want to dim 9 individual spotlights or control 3 full RGB LED strips for atmospheric lighting; this module handles it effortlessly and flicker-free.

  • 9 Independent Outputs: Perfect for complex lighting plans. Dim each strip or light individually from 0% to 100%.
  • RGB-Ready: The 9 channels are logically grouped, allowing you to fully control up to 3 RGB strips with a single module (R-G-B per group)..
  • High-Quality PWM Driver: We use a specialized driver chip that operates at a high frequency. This prevents the infamous “whine” or flickering often seen in cheap dimmers, even at the lowest dimming level.
  • The System Bus: For interference-free communication with the Master Unit.
  • Industrial-Grade Screw Terminals: Robust connections that won’t vibrate loose while driving.
  • Safe Power Isolation: The module requires an external 12V power supply for the LED strips themselves. This keeps the system bus logic safely isolated from the lighting power, enhancing the stability of your entire network.

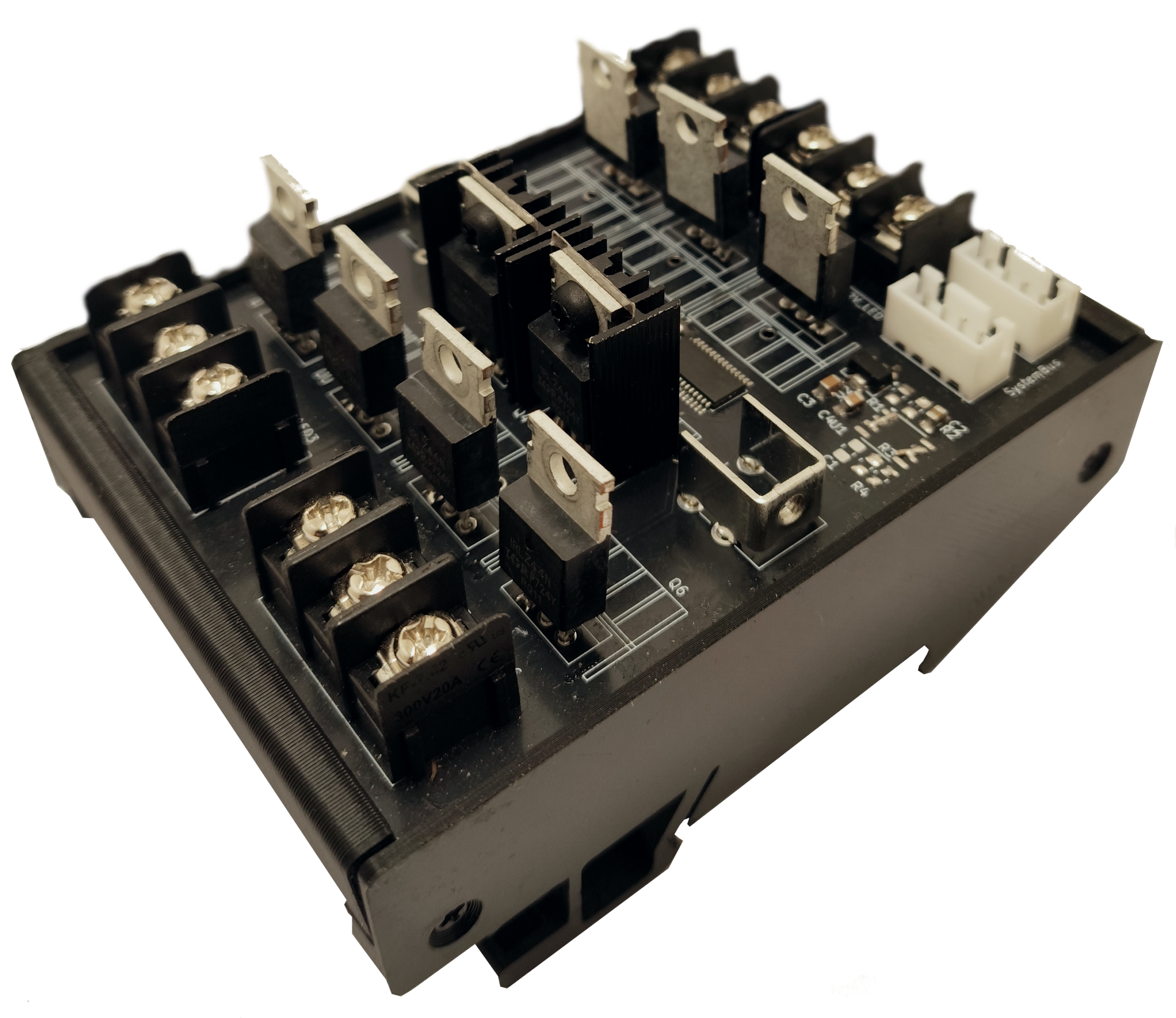

  • Individual Aluminum Heatsinks: Each powerful MOSFET is equipped with its own cooling profile. This dissipates heat directly from the chip, maintaining high efficiency and significantly extending the lifespan of the electronics.

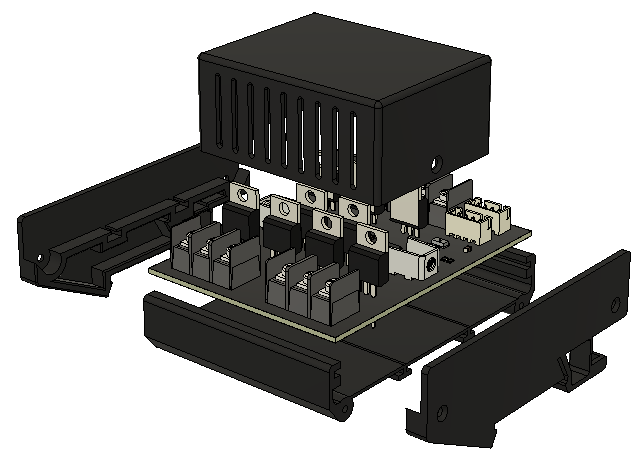

  • Passive Ventilation Enclosure: The specially designed housing features strategically placed ventilation slots. Thanks to natural convection, cool air flows past the components, even when the module is mounted vertically.

Technical specifications.

Powersupply8-15V DC
PowerMax 5A / channel.
Power usage10mA
Bus-Voltage12V DC
CommunicationI2C
Dimensions (LxWxH)72x95x60mm
VariantsAvailable as kit or digital file.

Switches
  • light.pwm_channel_1
  • light.pwm_channel_2
  • light.pwm_channel_3
  • light.pwm_channel_4
  • light.pwm_channel_5
  • light.pwm_channel_6
  • light.pwm_channel_7
  • light.pwm_channel_8
  • light.pwm_channel_9
